Self Bailer Valve

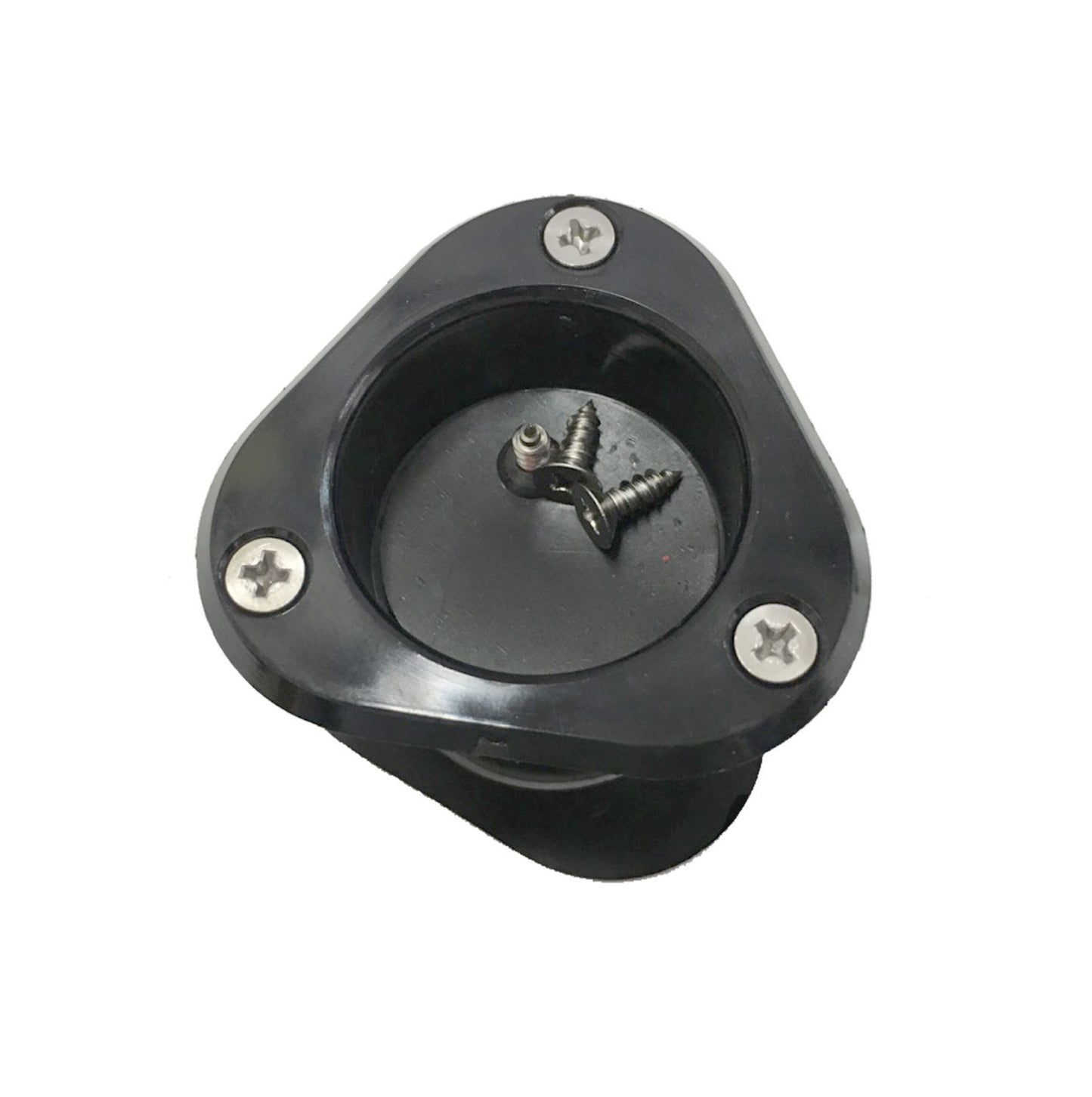

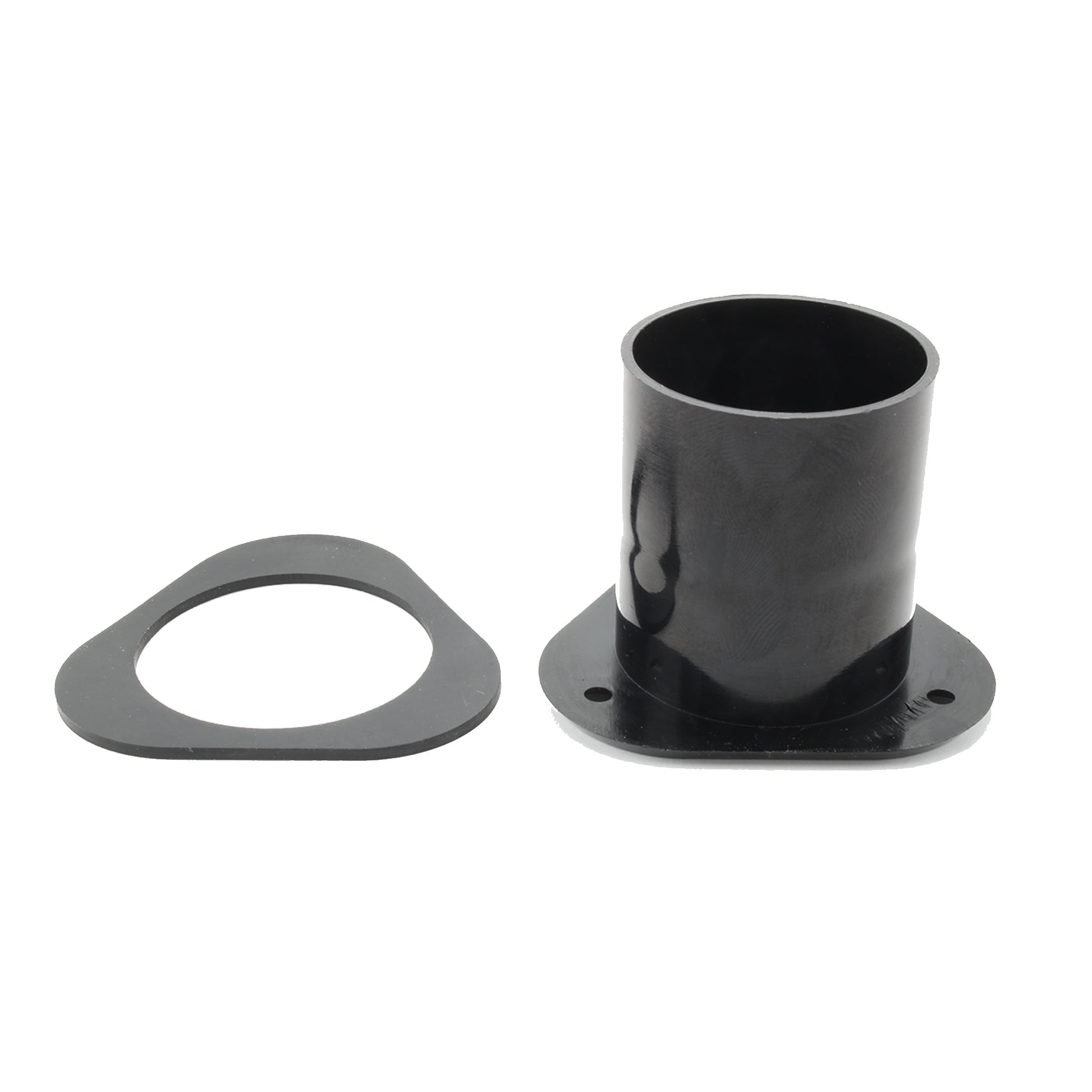

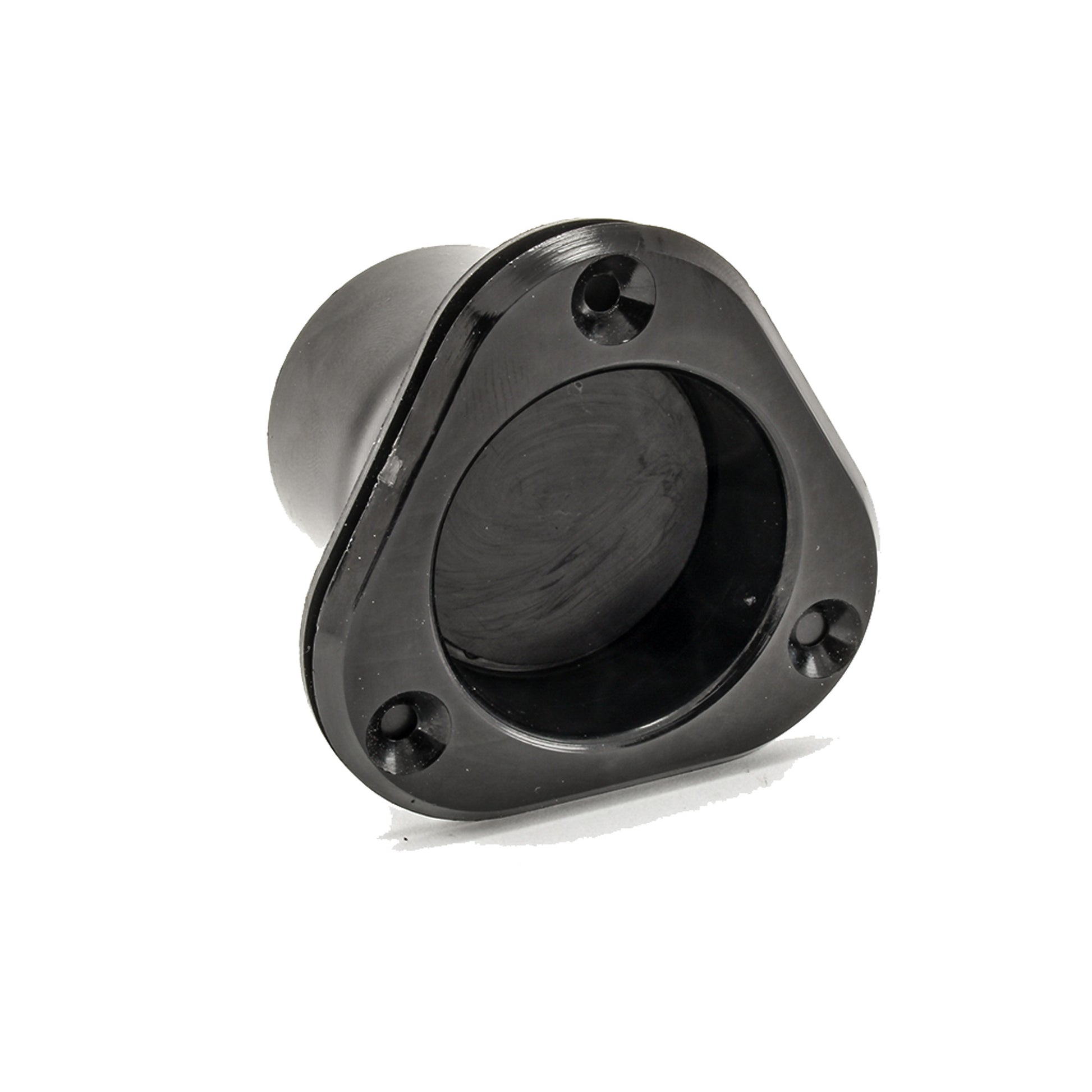

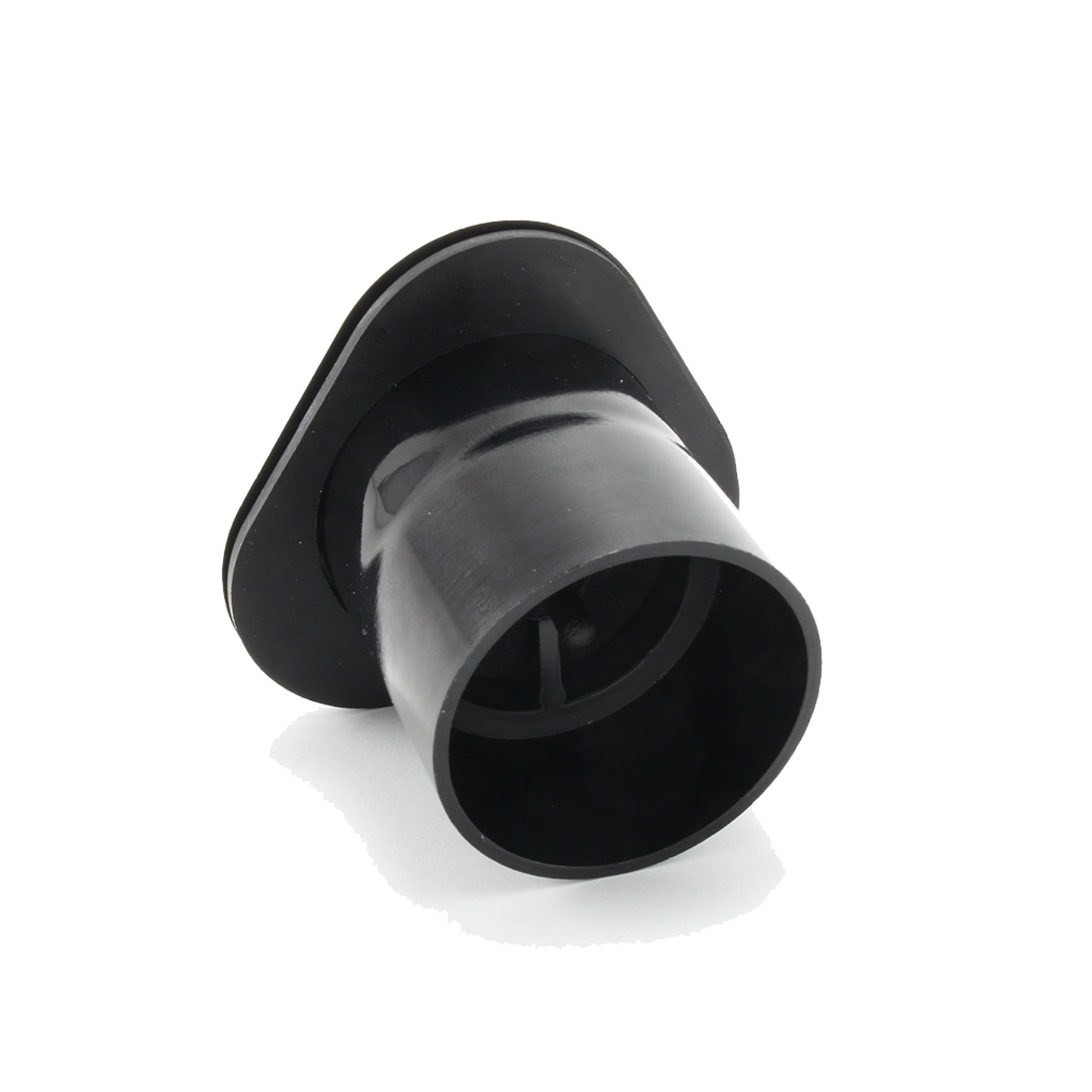

Achilles Self Bailer Valves are used on most of Achilles inflatables with exception of the RIBs and LT series. The valve will include the flapper or diaphragm, needed to keep most water from entering the hull when the drain plug is not in place. This is a full replacement, but will not include the drain plug (C441B). The old housing will need to be removed and the new housing fastened in its place. Applications: Suitable for Achilles inflatables with a 36 mm diameter drain plug hole. Dimensions (Metric): (A) Drain Plug Hole ID: 35 mm (B) Sleeve Length: 40 mm (C) Mounting Flange Diameter: 54 mm (D) Sleeve OD: 36 mm (E) Mounting Hole Distance (centre to centre): 41 mm Note: Drain plug sold separately.
